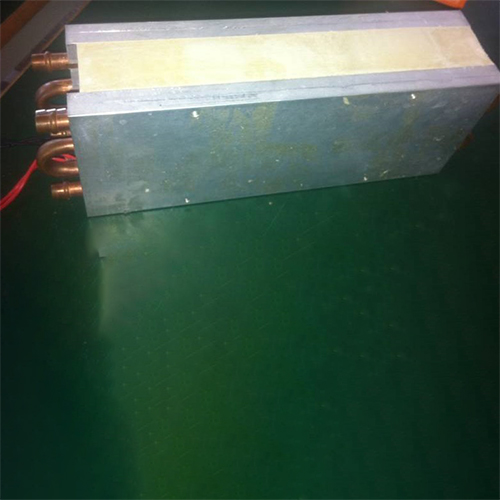

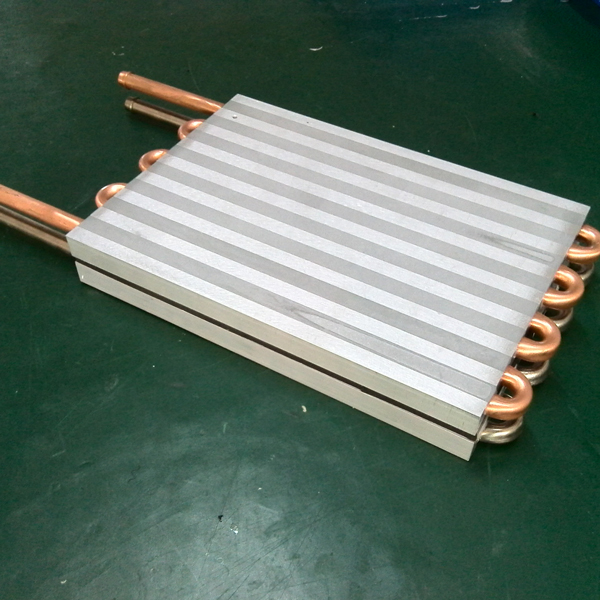

Adcol ALL320-24VDC was developed for customers which use liquid to cool down the hotside, it will get much lower temperature and stable for the cold side liquid system.
ALL320-24VDC:
Input V: | 24VDC | ||||||||
Working Current: | 15A | 2.6~3.3A | 4.5~6.5A | ||||||
Cooling Capacity: | 320w | 5084Btu/h | 4982Btu/h | 5186Btu/h | |||||
Overheat Protection: | Yes | ||||||||
Out/in Liquid: | Dia 10mm | Quick Connector 8mm in diameter | |||||||
Weight: | 3.6Kgs | 33Kgs | |||||||
Dimension | 250X101X65 mm (LxWxH) | ||||||||
