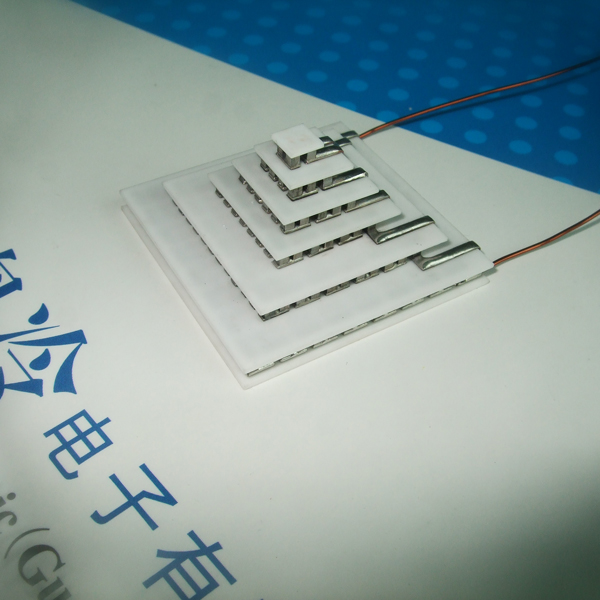

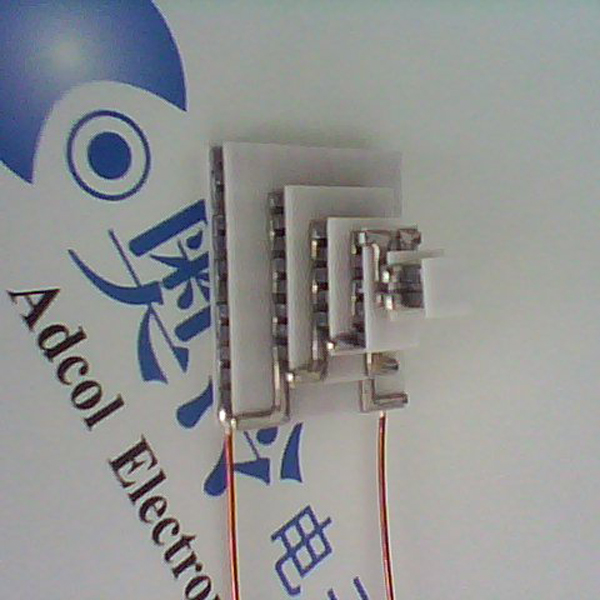

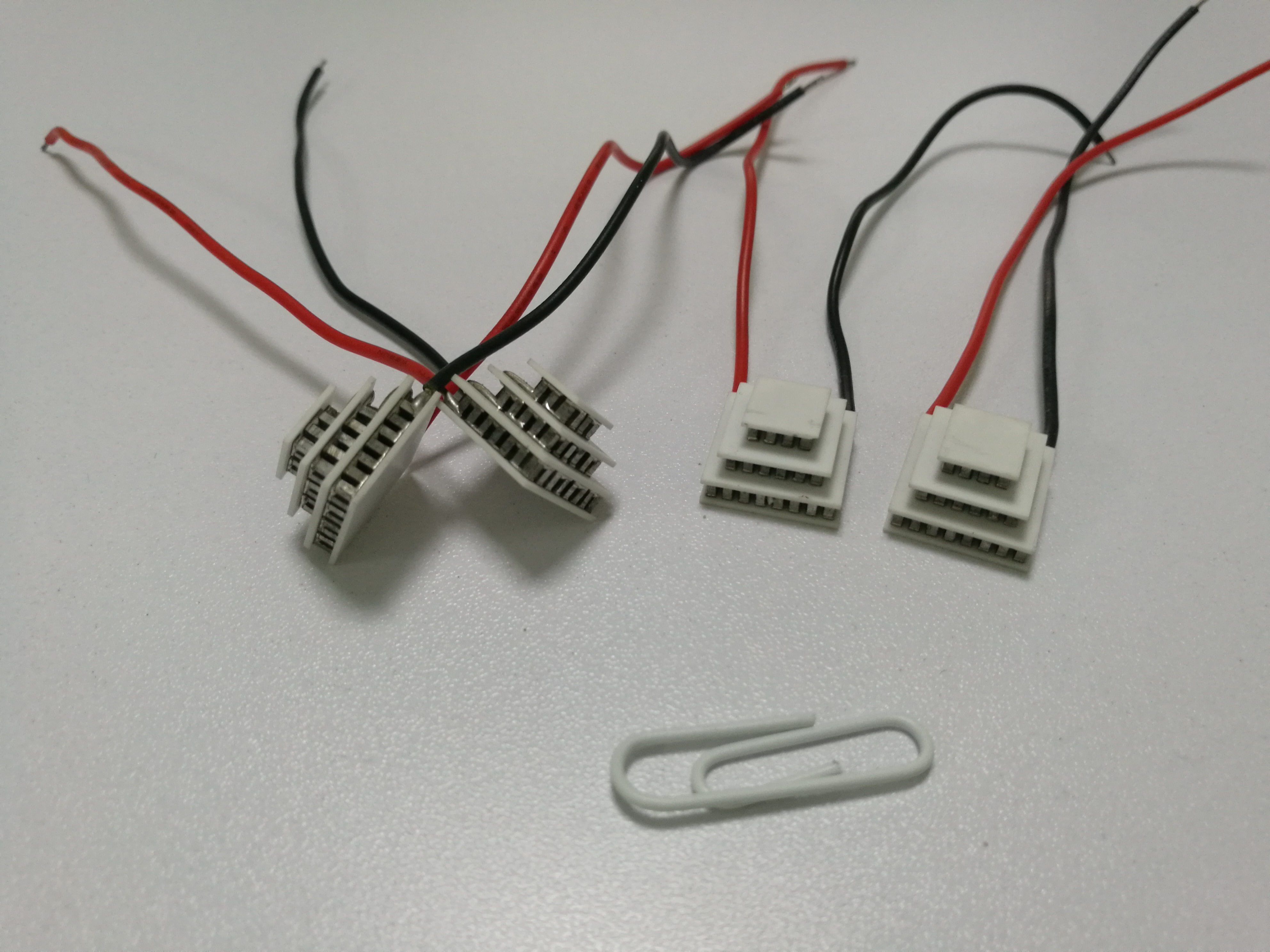

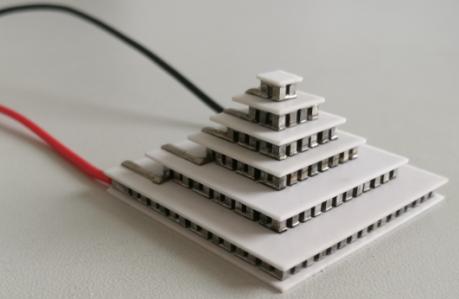

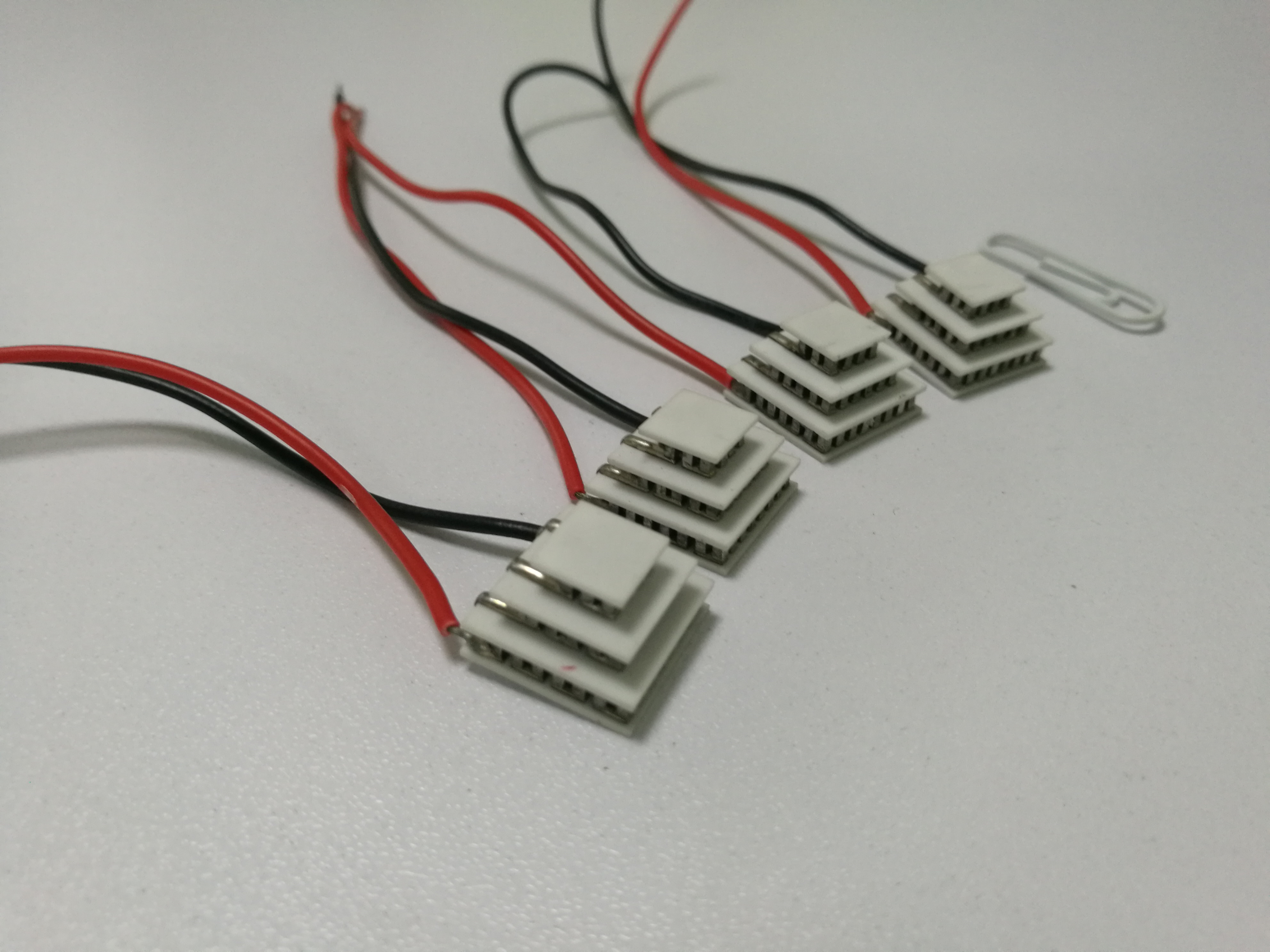

为了满足客户高温差要求的产品，奥冷提供客户低价格高质量的多级制冷片，参考下面明细：
| Th=25 degree C | Dimension 尺寸（mm) | |||||||||
| # | MulstageTEC 多级制冷片编号 | Imax 最大电流 | Qmax 最大功率 | Vmax 最大电压 | Del T 温差 | A 冷面长 | B 冷面宽 | C 热面长 | D 热面宽 | E 厚度 |
| 1 | 2ATC 025 040-7-3 | 1.45 | 0.42 | 0.84 | 86 | 3.2 | 3.2 | 3.9 | 3.9 | 3.8 |
| 2 | 2ATC 025 040-16-8 | 1.4 | 1.03 | 1.96 | 83 | 4.1 | 4.1 | 6.1 | 6.1 | 4.2 |
| 3 | 2ATC 1.4-24-F9 | 1.4 | 0.92 | 2 | 91 | 4 | 4 | 6.6 | 6.6 | 3.8 |
| 4 | 2ATC 040 065-31-17 | 2.1 | 3.11 | 3.8 | 81 | 11.5 | 11.5 | 15 | 15.0 | 6.6 |
| 5 | 2ATC 055 065-31-17 | 4 | 6.04 | 3.8 | 81 | 15 | 15 | 20 | 20.0 | 7.2 |
| 6 | 3ATC 1.3-26-F9 | 1 | 0.45 | 2.2 | 109 | 2.5 | 2.5 | 6.2 | 6.2 | 5.3 |
| 7 | 3ATC 1.3-0.65-2.4-109 | 1.3 | 0.65 | 3.4 | 109 | 4.2 | 4.2 | 8.3 | 8.3 | 5.3 |
| 8 | 3ATC 040 065-31-17-7 | 1.8 | 1.52 | 3.8 | 96 | 8 | 8 | 15 | 15.0 | 9.5 |
| 9 | 3ATC 055 065-71-31-17 | 3.5 | 6.53 | 7.7 | 97 | 15 | 15 | 30 | 30.0 | 10.4 |
| 10 | 3ATC 055 065-127-71-31 | 3.5 | 12.58 | 15.4 | 96 | 20 | 20 | 40 | 40.0 | 10.4 |
| 11 | 4ATC 040 080-31-17-7-2 | 1.5 | 0.47 | 3.8 | 114 | 3.5 | 3.5 | 15 | 15.0 | 14.0 |
| 12 | 4ATC 055 065-69-29-11-6 | 3.4 | 2.68 | 7.5 | 112 | 4.5 | 14.5 | 24 | 33.0 | 13.8 |
| 13 | 4ATC 055 065-127-71-31-17 | 3.1 | 6.84 | 14.6 | 107 | 15 | 15 | 40 | 40.0 | 13.8 |
| 14 | 5ATC 055 065-127-71-31-17 | 3 | 3.37 | 14.5 | 118 | 10 | 10 | 40 | 40.0 | 16.9 |
| 15 | 6ATC 055 065-127-71-31-17-7-2 | 3 | 1.2 | 14.5 | 131 | 5 | 5 | 40 | 40.0 | 20.1 |
